Product Details

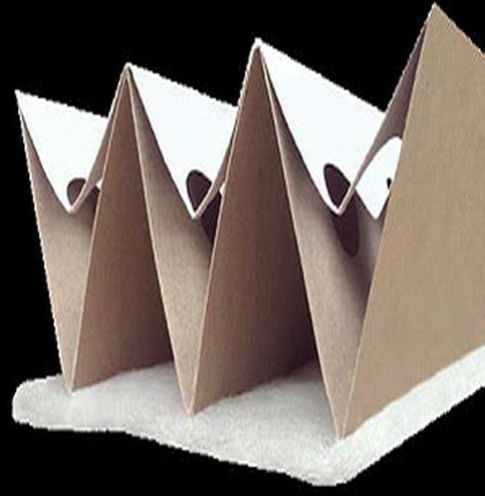

The Andreae HE Original Filter will bring a filtration efficiency near 100% while keeping the high loading capacity of the Andreae Original filter. The HE is made with 2 layers of heavy “kraft” paper, punched, pleated and glued together
completed with a polyester layer on its back increasing its filtration efficiency.
Specification
| SPECIFICATION | ||
| LOAD [KG/M3] [LBS/SQFT] | ||
| Lacquers 9kg / m2 1,85lbs / sqft |
High Solids 12,2kg / m2 2,4lbs / sqft |
Polyester 14,7kg / m2 2,9lbs / sqft |
| EFFICIENCY [%] | ||
| Lacquers 97.90 % |
High Solids 99 % |
Polyester 99.40 % |
| RECOMMENDED AIR VELOCITY | ||
| 0.5 to 1 m / s | ||
| PRESSURE DROP AT/BY | ||
| 0.5 m/s 21 pa |
0.75 m/s 32 pa |
1.0 m/s 42 pa |
| MAX. RECOMMENDED PRESSURE DROP | ||
| 128 pa ( possible up to 256 ) | ||
